Why Aren't Mercury Slip Rings Widely Used?

 Overview

Slip rings are used to transmit power, signals, and data between the rotating and stationary parts of the rotating equipment. Mercury slip rings serve the same purpose, yet they haven't been widely adopted. Today, let's discuss the reasons behind this.



What Are Mercury Slip Rings and How Do They Work?

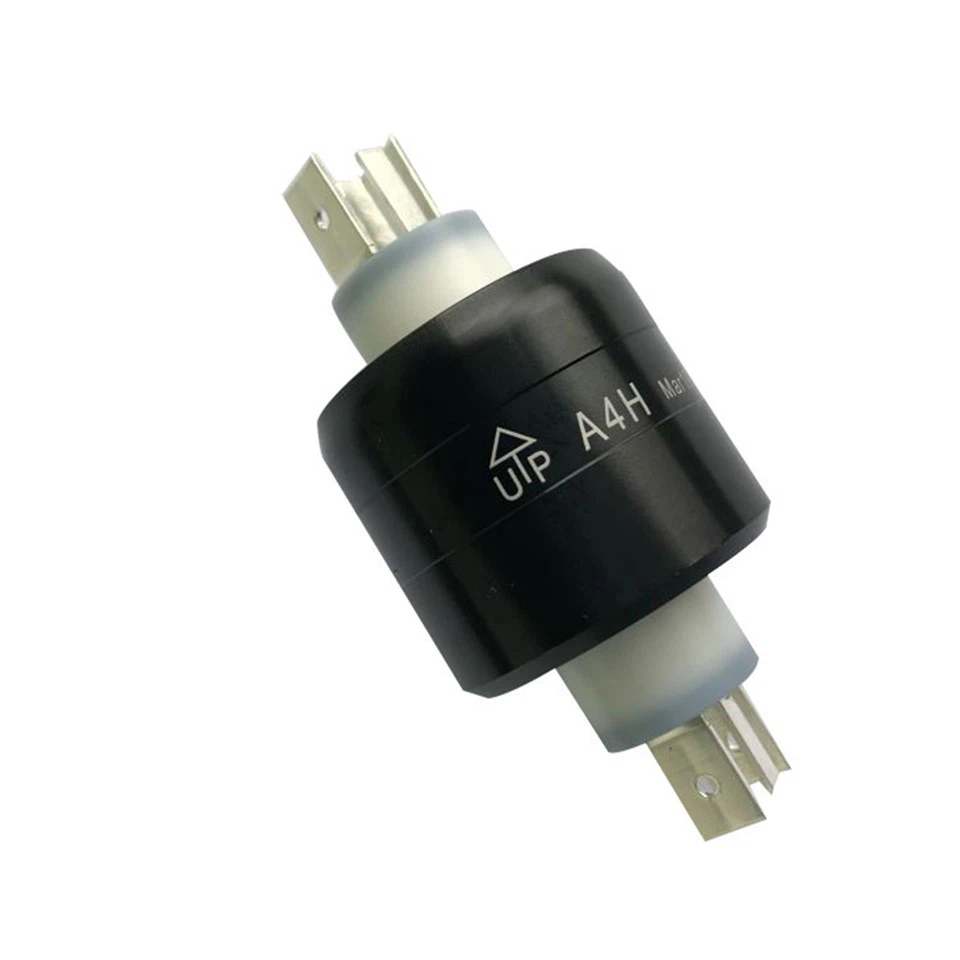

A mercury slip ring is a special type of slip ring, also known as a mercury - wetted slip ring or mercury contact. It uses liquid mercury as the conductive medium instead of traditional conductive components like carbon brushes to transfer signals and current between rotating devices. Due to its fluidity, when the rotor rotates, mercury maintains contact with the conductive ring at the molecular level throughout the rotation, ensuring a good electrical connection.

Limitations of Mercury Slip Rings

lLimited Operating Temperature: Due to the large coefficient of thermal expansion of mercury, mercury slip rings cannot be used at high temperatures. Their operating temperature should not exceed 60 degrees Celsius. Otherwise, the mercury will expand and leak. Additionally, they will solidify at low temperatures (-40°C), being unsuitable for cold areas.

lHigh Requirements for Working Environment: Mercury slip rings need to operate in a relatively stable environment. Vibration can cause uneven distribution of mercury and even lead to leakage. Meanwhile, humidity and corrosion may damage the outer shell and internal structure of the slip ring.

lSafety Hazards: Currently, mercury slip rings do not meet RoHs certification requirements and are prohibited from import in many countries. This is because mercury is a highly toxic liquid heavy metal with strong volatility. Therefore, it is not advisable to use them in food processing or pharmaceutical equipment. In case of a leak, it will pollute the environment and endanger the safety of operators, such as causing Minamata disease.




Advantages of Mercury Slip Rings

Although mercury slip rings have the above - mentioned limitations, they also have some significant advantages like:

lCompact Structure: In mercury slip rings, liquid mercury is used to conduct electricity, replacing complex mechanical structures. Its structure is relatively simple and compact, making it more suitable for precision instruments compared to disc - type slip rings, separate slip rings, etc.

lNo Wear: Compared with carbon brushes, mercury hardly rubs against the surface of the conductive ring during rotation. So the rings can keep a smooth surface and high conductivity. The slip rings are highly suitable for equipment that requires frequent rotation.

lSignal Non - Distortion: Mercury has excellent electrical conductivity and fluidity. During the transmission process, it rarely generates noise, enabling signals to be transmitted with their original waveforms, frequencies, and amplitudes. This makes it suitable for applications with high requirements for current transmission.



Conclusion

In conclusion, due to various factors such as temperature limitations, safety hazards, and regulatory restrictions, mercury slip rings are severely restricted in applications in extreme - temperature locations like food processing, space, and outdoor environments.

However, they are popular in communication equipment and industrial production lines due to features such as low - resistance rotation, high - fidelity signal transmission, and a compact structure. If you want to know more information about mercury slip rings, ByTune is always here for you.
